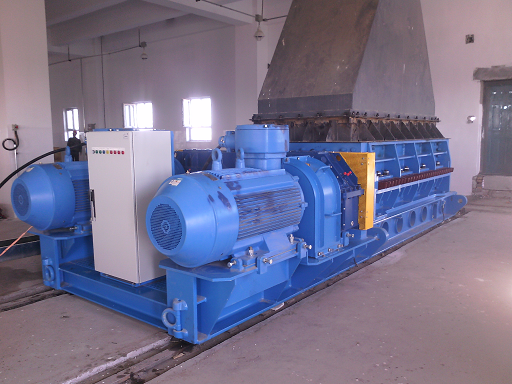

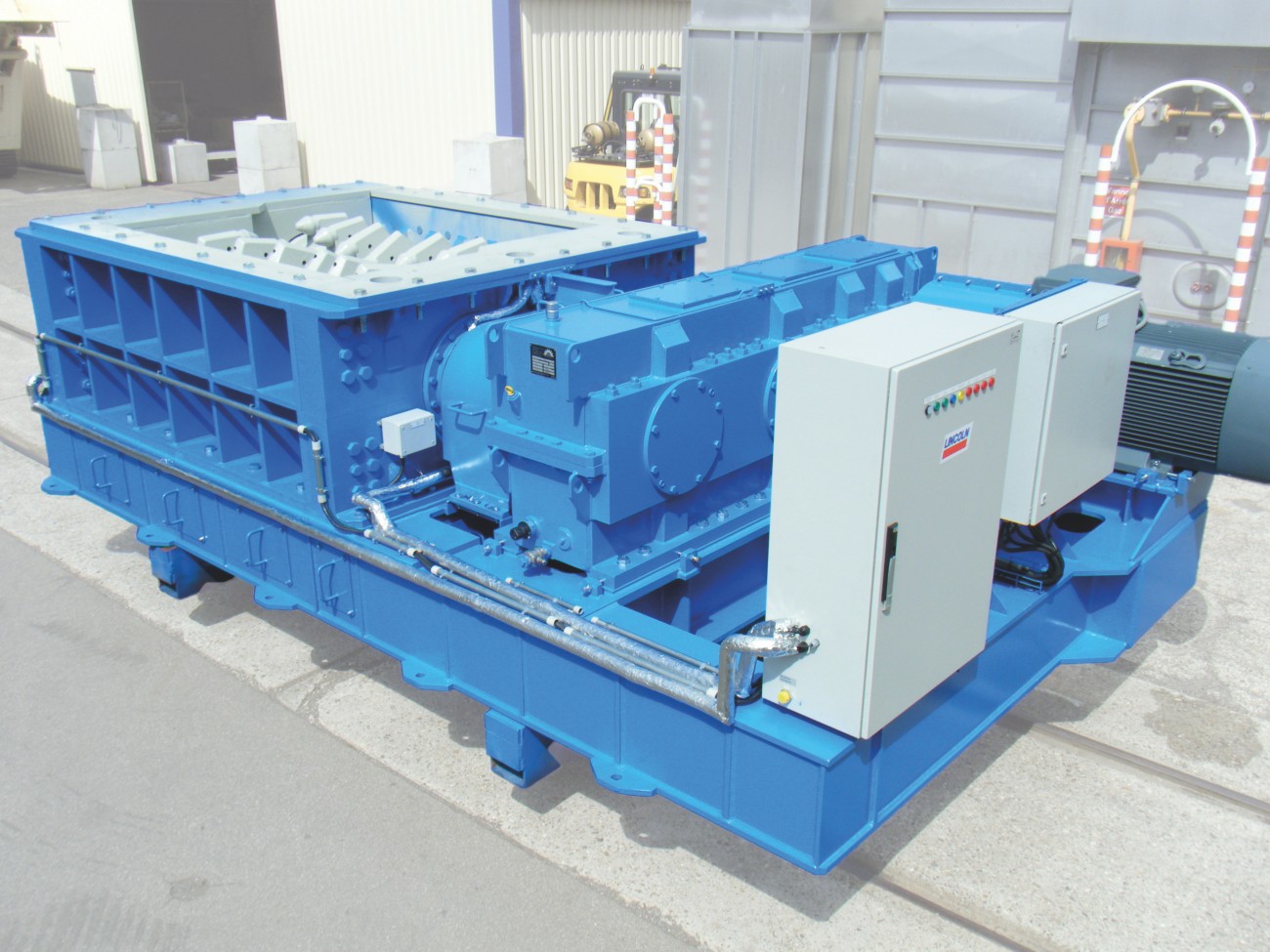

The Roller Sizers capable of crushing medium-hard rock as well as sticky and soft material such as lignite, coal, clay, marl, limestone and similar raw materials. The Roller Sizers is low in height and easy to install in existing mines and is suitable for installation in mobile, semi-mobile or stationary crushing stations.
The Roller Sizers capable of crushing medium-hard rock as well as sticky and soft material such as lignite, coal, clay, marl, limestone and similar raw materials. The Roller Sizers is low in height and easy to install in existing mines and is suitable for installation in mobile, semi-mobile or stationary crushing stations.
Features:
·Compact, flat design.
·Low overall height of crushing plant.
·Easy integration in existing plants.
·Low fines content in the final product.
·Low dust generation.
·No dedusting system required.
·Optimized broken tooth shape and special wear-resistant material reduce the wear of equipment.
Technical Parameters:
|
Tooth Tip Diameter |
590-1800mm |
|
Max. Feed Size |
480-2000mm |
|
Throughput Rate |
1500-10000t/h |
|
Installed Power |
55-1200kw |
|
Weight |
About 4-150t |
|
Crushing Ratio |
（3-6）:1 |
